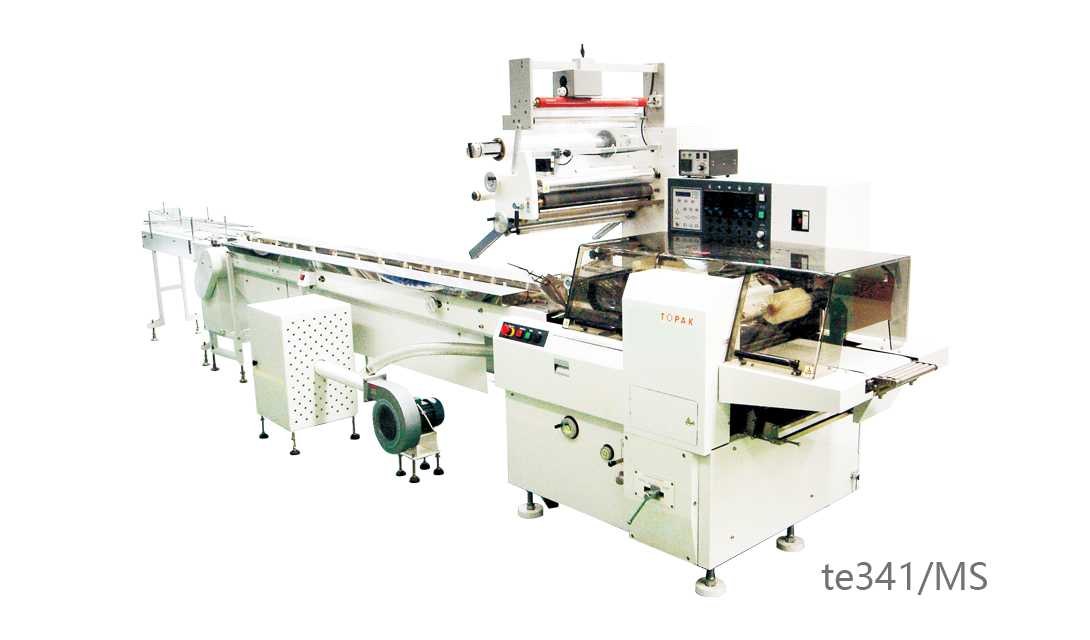

TOPAK TE341/MS High-Speed Shrink Film Wrapper
【Standard Features】
- Based on te341 high speed wrapper, te341mII/MS is specially built for shrink film packaging.
- Melt-cut-seal is adopted for end sealers, which ensures strong sealing.
- Transitional conveyor belt and chain mechanism suitable for transporting heavy products.
- Unique Regi-mark tracking system for color film packaging.
- Optional melt-cut center seal, seal trimming, and film scrap collector available.
- High speed shrink tunnel and adjustable heat flow system ensures shrink quality.
【Standard Specifications】
| End Seal Diameter | RD195 | |
| Operation Speed | 25~150p/m | |
| Cut-off Length | 155~600mm | |
| Film Width (max) | 600mm | |
| Film Diameter (max) | 300mm | |
| Product Specification (max) | width | 200mm |
| height | 115mm | |
| Motor | Main | 1kw |
| Shrink Tunnel | 1.5kw | |
| Heater | Main | 2.5kw |
| Shrink Tunnel | 24kw | |
| Machine Dimension | Main | 3880*1055*1570mm |
| Shrink Tunnel | 2700*550*1300mm | |
| Machine Weight | Main | Approx.1100kg |
| Shrink Tunnel | Approx.700 kg | |
